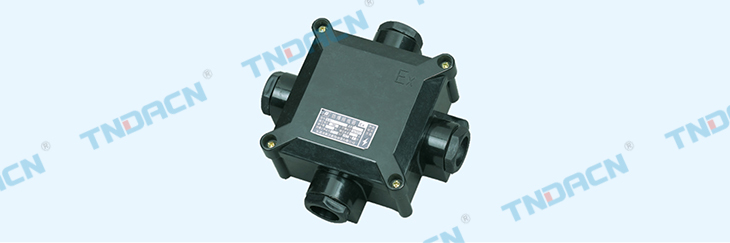

BH8050-type explosion& corrosion-proof junction box (ⅡC)

Product Details
Return

型号含义 Modelimplication

适用范围 Applications

1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或可燃性粉尘环境；
3.强腐蚀气体和粉尘环境；
4.户内、户外(IP65、IP66*)；
5.温度组别：T1~T4/T5/T6；
6.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2or zone 20、21、22；
2.Explosive gas atmospheres: classⅡA,ⅡB,ⅡC or flammabledust atmospheres;
3.Serious erosive gas environment;
4.Indoor or ortdoor(IP65,IP66*);
5.Temperature class:T1~T4/T5/T6;
6.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

产品特点 Features

1.接线箱外壳采用高强度、耐腐蚀、热稳定性好的玻璃纤维不饱和聚酯树脂压制而成；
2.采用迷宫式结构，具有较强的防水、防尘、防腐蚀性能；
3.壳体有各种规格，可根据电流、接线端子数及出线口数选用单壳体或单壳体的组合形式以满足需要。
1.The enclosure is pressed by glass fibre unsaturated polyester resin with high intensity, erosion-proof and good thermalstability properties;
2.Labybrith structure, with serious water , dust and erosion proof functions;
3.There are various enclosures, according to current , connection terminals and outlets, single enclosure of combination ofsingle enclosure can be selected to satisfy requirement.

主要技术参数 Main technical parameters

额定电流(A) Rated current	额定电压(V) Rated voltage	进线螺纹(G") Inlet thread	电缆外径 Cable outer dia.(mm)
20	380	G3/4"	φ10~φ14

防爆标志 Ex-mark	防腐等级 Erosion-proof class	防护等级 Degree of protection
Exe ⅡT6等效于 Ⅱ2G Exe ⅡT6(欧标） DIP A20 TA,T6等效于 Ⅱ1G Ex tD A20 T6(欧标)	WF2	IP65,IP66*

*.要求IP66,需注明。IP66 requirements must be marked

外形及安装尺寸 Outline & installation dimensions
